NORDAIR | TBLS - Straight Duct L1500

Telescopic pipe to create a variable extension from 50 to 1400 mm

Pipe L=1500 made of DX 52 Z 200 galvanized sheet metal and supplied with special rubber O-RING and fixing collar

Welded longitudinally to ensure a perfect seal and provided with one side with smooth and one side with edge for collar

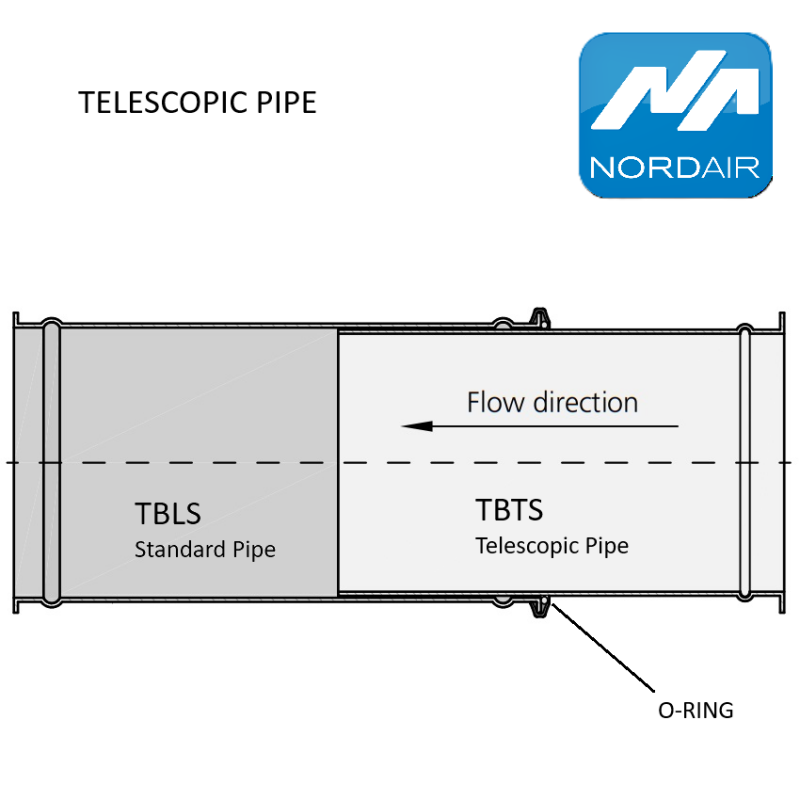

The TBTS telescopic pipe must be combined with a standard TBLS pipe, the fixing between the two elements is achieved through the pressure exerted by the O-RING which is fixed using a special collar with a wide edge. Simply insert the TBTS pipe complete with O-RING inside your TBLS, once positioned at the desired length, simply fix the collar screw. In this way, a highly resistant and perfectly sealed industrial fixing is obtained.

This innovative system allows you to save up to 80% of design and assembly costs

The sales kit consists of three pieces: TBTS telescopic pipe, O-RING, fixing Collar. Excluding the TBLS tube which must be purchased separately.
